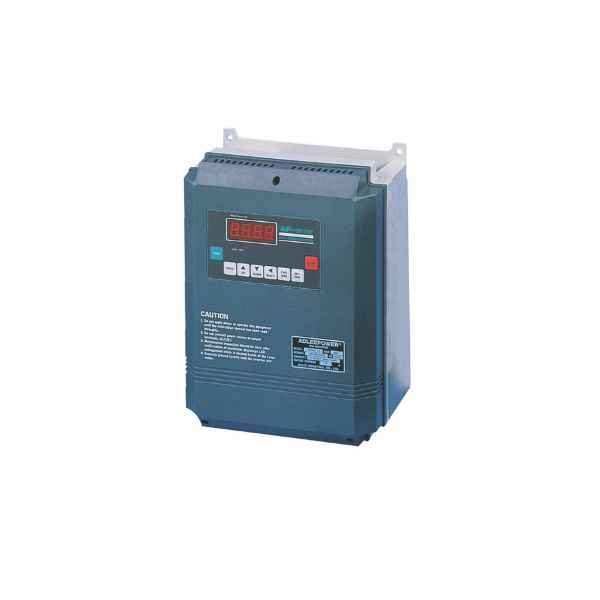

AP Series Variable Frequency Inverter
Description
The Variable Frequency Drive is suitable for any general-purpose application that involves a AC motor, has full of operation functions. Built-in variable digital/analog input functions to meet a wide variety of needs. Adlee’s variable frequency inverter is easy to install and convenient to humanity operating features| Product applications: | ||
| Work with every kind of applications of AC induction motor. |
- Features
- Variable Frequency Drive
- 1. New Technology Super Low Noise
- Innovative soft/hard ware. optimum waveform. The motor as quiet as running with commercial power.
- 2. All Model Equipped With IPM
- Employ IPM (intelligent power module) for power device. IPM provides numerous advantages such as quiet operation, high efficiency, high torque smoother shaft rotation and improved reliability.
- 3. Expansion Of Frequency Range
- The range of variable frequency has been greatly extended from 0.5HZ-2400HZ. and S curve for smooth ACC/DEC. performance.
- 4. Upgrading V/F Characteristic
- Provide constant torque curve (F1) reduce torque curve (F2) and (F3) for FAN/PUMP drive. Adjustable saving energy operation and wide basic voltage setting from 30HZ-2400HZ. Double V/F curve performance.
- 5. Enhanced I/O Function
- Built-in variable digital/analog input functions and RS-485 communication to meet a wide of variety of needs, then our VFD is easy to install and convenient humanity operating features.
- 6. Compact Structure
- Adlee AC drive’s compact size design makes installation easier, it solves space limited problem.
- 7. Extended Braking Resistor Available
- All series with extended braking resistor terminals. It makes machine more reliable in high frequency switching RUN/STOP or High speed/Low speed situation.
- 8. Cycle Timing Function
- All series AC inverters are with cycle timing function for special purpose option.
- Not only cost decrease but also use friendly for Timer model replacing general purpose AC drive with PLC.
